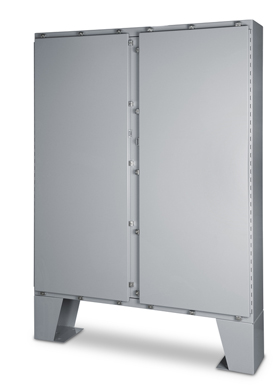

The Megadox is a chlorine dioxide gas generation system designed for use in any pharmaceutical, manufacturing, laboratory, or research setting. It provides a rapid and highly effective method to decontaminate large volume areas up to 560,000 ft3, including rooms, isolators (sterility test, filling line, containment, etc.), passthroughs, processing tanks and vessels, cleanrooms, lyophilizers, etc. The Megadox utilizes a rugged industrial control system and is constructed of robust, corrosion resistant 316L stainless steel to provide an exceptionally long life.

The system features a sophisticated photometric sterilant concentration monitoring system allowing for a tightly controlled and consistent sterilization process. This repeatable, tight process control and accurate concentration monitoring system make chlorine dioxide gas sterilization cycles easy to validate. When sterilization cycles are completed, a run record is produced that contains cycle data including the date, cycle time, cycle steps, as well as temperature, pressure, and chlorine dioxide concentration. Run Data can also be electronically logged to the included USB drive. The control system features a password protected, recipe management system with historical and real time trending of cycle data.

The Megadox is available as either a Megadox-4 (280,000 ft3 of total decontamination capacity) or Megadox-8 (560,000 ft3 of total decontamination capacity) configuration to suit both large and very large applications.

The Megadox-4 is also available in a portable configuration. Please visit our Megadox-P page for complete information on that model.

Chlorine Dioxide Gas Sterilization

Chlorine dioxide is unparalleled in its ability to effectively decontaminate. Being a true gas, it is unaffected by temperature changes, room configuration, chamber loads, has excellent penetration and distribution properties and is an EPA registered sterilant.

Advanced Concentration Monitoring

ClorDiSys' Megadox-P features a sophisticated real-time chlorine dioxide gas concentration monitoring system to ensure a tightly controlled decontamination process.

Trouble-free Large Scale Sterilization

The exceptional size scaling ability of chlorine dioxide gas, a true gas, makes even the most challenging decontamination an easy task.

Printing and USB Data Logging

The Minidox-M utilizes a USB drive to keep track of all cycle parameters during a decontamination. This data can then be downloaded to any database software. A printed run record can also be provided with the included printer.

Megadox-4 / Megadox-8
Decontamination Capacity up to 560,000 ft3
(16,000 m3)
Dimensions 60" W x 62" H x 12" D
(152 cm x 158 cm x 31 cm)
Weight 1,500 lbs. (680 kg)
Power 100-240 VAC, 10 amp, single phase
